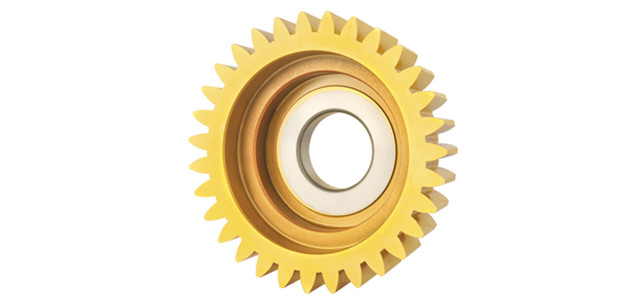

Bowl Type Gear Shaper Cutter

Bowl Type Gear Shaper Cutter

Module: m0.8-m18,DP,PA20

Tooth profile; GB,DIN3972 standard

Dimension: 20-240mm

Material:HSS M2,M35,M42,ASP2030,ASP2052,S390

Coating: TiN,AP

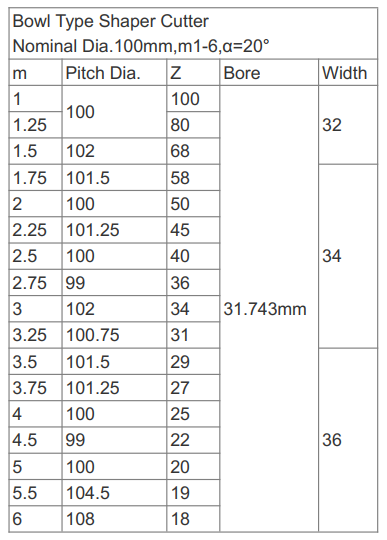

Conventional specifications of standard bowl type gear shaper cutters with m1-m6 pa20 as following:

Module, DP and CP series Gear Shaper Cutters are supplied by Jiangxing Tools

Various forms of Shaper cutters such as non-topping, semi-topping, topping, finishing, roughing, pre-shaving or pre-grinding, with or without protuberance, etc., are manufactured,

Both spur type and helical type Gear Shaping cutters are made

Designing and Production of relief ground Shaping cutters for involute splines, worms (cutter to be used in hobbing machine by kinematics inversion process) and relief machined cutters for sprocket, parallel sided splines etc., are done at Jiangxing Tools.

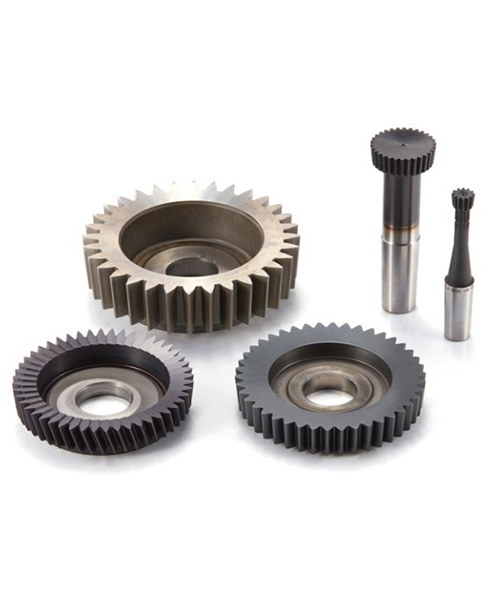

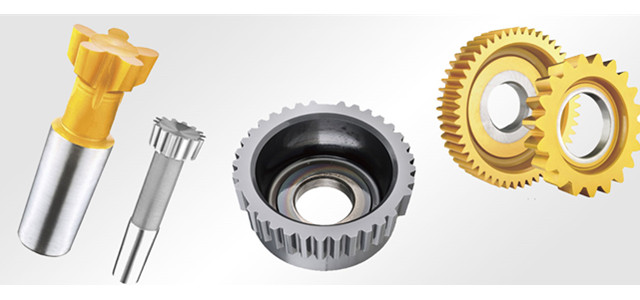

The range of Shaping cutters available at Jiangxing Tools includes different varieties of disc type, hub type and shank type. Tandem Shaping cutters are also supplied

Shaper cutter material is generally AISI M35 (6-5-2+5%Co). On special request, Shapers made in powder material (ASP2030, ASP2052,S390) and TiN, TiAIN, Alcrona Pro coated Shapers are supplied. Normally, accuracy classes are as per DIN 1829 Standard AA,A. However Shaper cutters are made to suit other accuracy Standards also.
