HSS Straight Tooth Pinion Cutter

HSS Straight Tooth Pinion Cutter

Module: m0.8-m18,DP
Tooth profile; GB,DIN3972 standard
Dimension: 20-240mm
Material:HSS M2,M35,M42,ASP2030,ASP2052,S390
Coating: TiN,AP

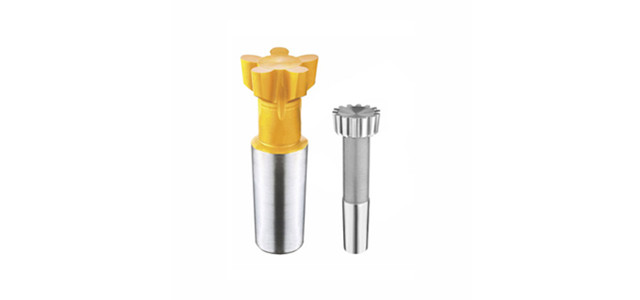

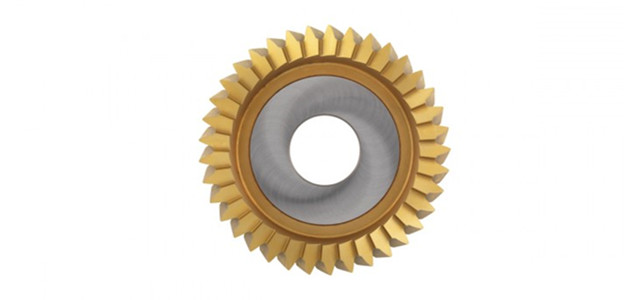

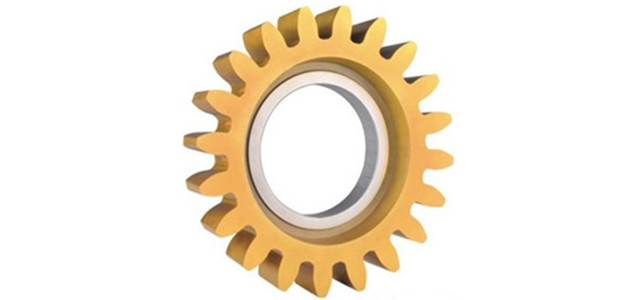

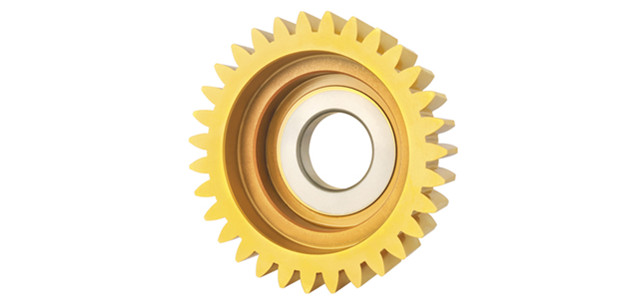

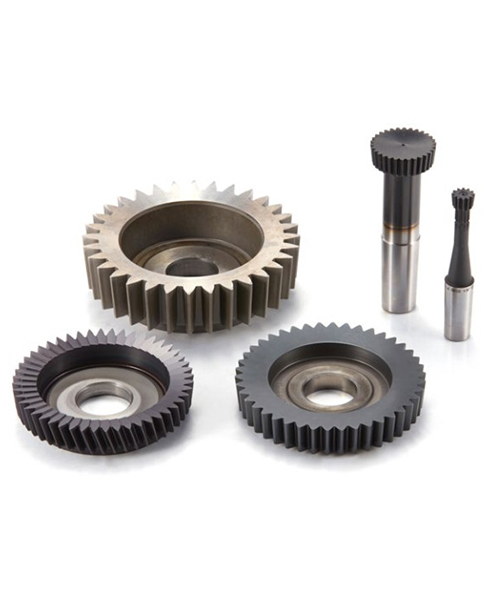

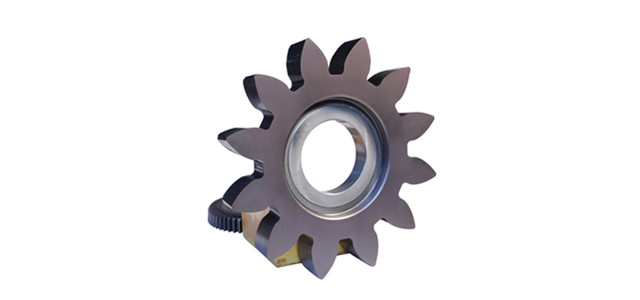

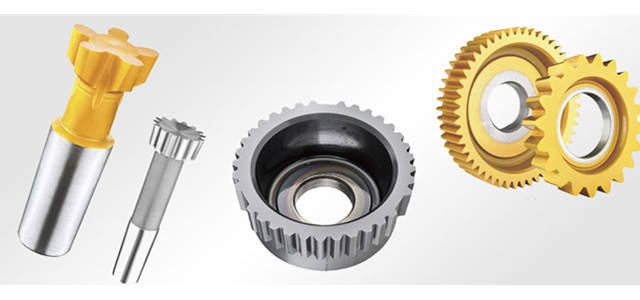

HSS Gear Shaping Tools type: disk-type gear shaping cutter, deep counterbore-type shaping cutter and shank-type shaping cutter

Conventional standard bore diameters: 31.743mm, 44.443mm,etc

Profile modifications of gear shaping cutters: Semi-topping, Protuberance,Topping,Modification of flank for tip and/or root relief on gear, Modification of pressure angle, Combination of several of the above modifications

Chongqing Jiangxing Tools is professional gear cutting tools manufacturer and we have been exporting various gear cutting tools such as standard gear hobs, involute spline hob, roller chain sprocket hob, timing pulley hob, parallel side spline hob, worm gear hob, carbide hob, gear shaper cutters, shaving cutters, gear milling cutters and broaches etc tools made in up-to-dated facility with rich experience.

Any special requests on HSS Straight Tooth Pinion Cutter please contact us for more details.
