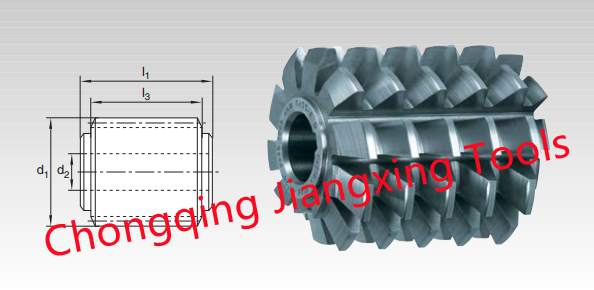

HSS gear hob cutter with relief ground DIN 8002 B
HSS gear hob cutter with relief ground DIN 8002 B

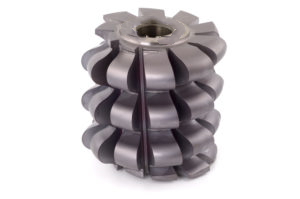

solid type gear hobs for spur and helical gears to
module pitch
20° pressure angle
basic profile II to DIN 3972
single start right-handed, with drive slot
Dimensions for std gear hob cutter, relief ground, quality grade A to DIN 3968, DIN 8002 B as following:
The complete range of gear hobbing tools produced by us, besides large modules gear hobs, is completed by
- Solid gear hobs from m0.5 -m24 mm
- Spline hobs (parallel side or involute such ASA)
- Roller chain sprocket hobs
- Carbide hobs
- Worm gearl hobs, shank type or bore type
- Timing pulley hobs
- HM solid gear hobs
The precision class of gear hobs obviously is regulated by international standards such Din 3968 (class A and class AA)
