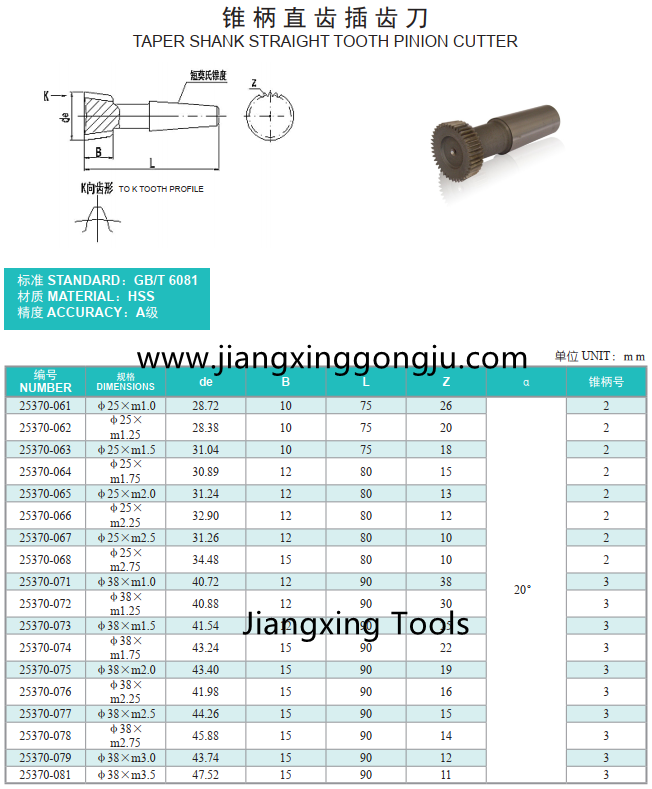

GB STD PCD25mm/38mm Taper Shank Gear Shaping Cutter
Module: M1-m4,PA20
Morse Taper: No.2, No.3
Material: HSS M2, M35+TiN, AP
Accuracy: Class A
Also standard shank type gear shaper cutter module with PA30 can be ordered as request.
