High Speed Dry Cutting Hob with Carbide K44+AP
2023-04-21 11:39:11
jiangxingTools
2582

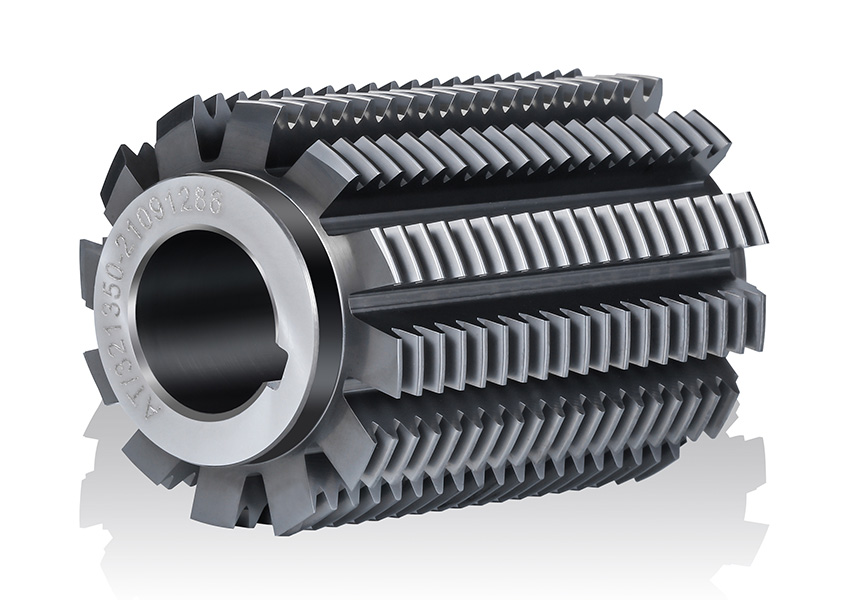

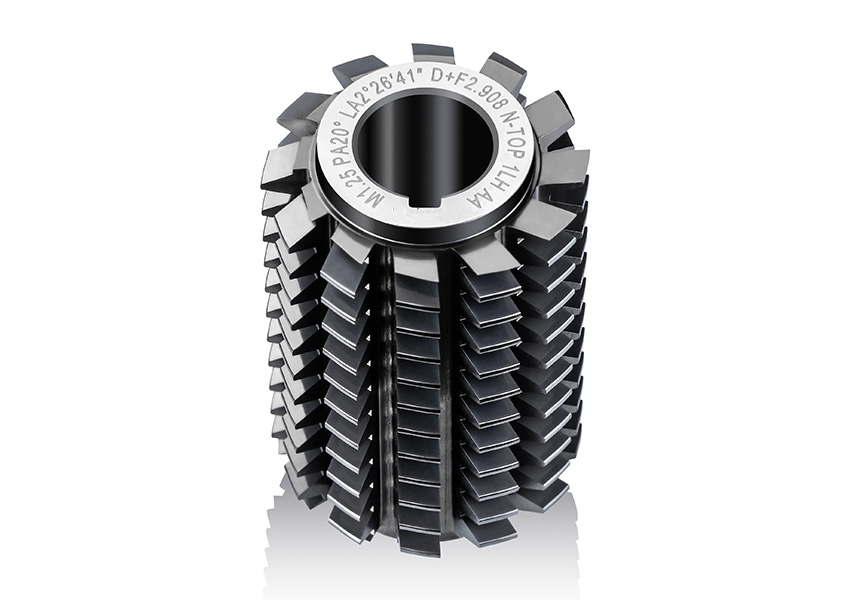

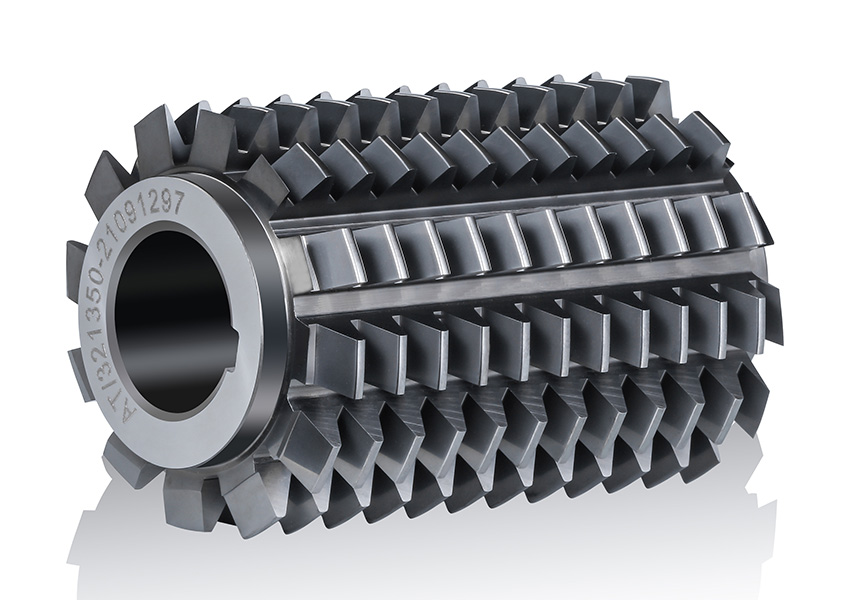

High Speed Dry Cutting Hob with Carbide K44+AP
base material: solided cemented carbide from Konrad, Germany
bore type carbide hob, K44+AP coating(BALINT ALCRONA PRO)
high efficient optimal seclection, for high speed gear hobbing
recommended linear speed: 150m/min~300m/min
recommended hob feed: 0.5-0.8mm/r
dry and oil cooling cutting environment
recommended hardness of processed ≤45°
accuracy class DIN AA, AAA
bore of carbide hobs is 8mm, 10mm, 13mm, 16mm, 22mm, 27mm and 32mm
module rangle: m0.5-m2.5, OD 25-80mm, patterns: for finishing use
tooth profile for topping, or non-topping
